Camera control
There are 2 ways to control the camera. The first being in interactive mode and the second being apart of a macro.
Interactive mode
Upon connecting to the system, the imaging display appears. This tool works with specially adapted RaspberryPi cameras such as this one that controls pipettes tips. This particular camera has a focusing lens and the light sensitivity gain is adjustable.

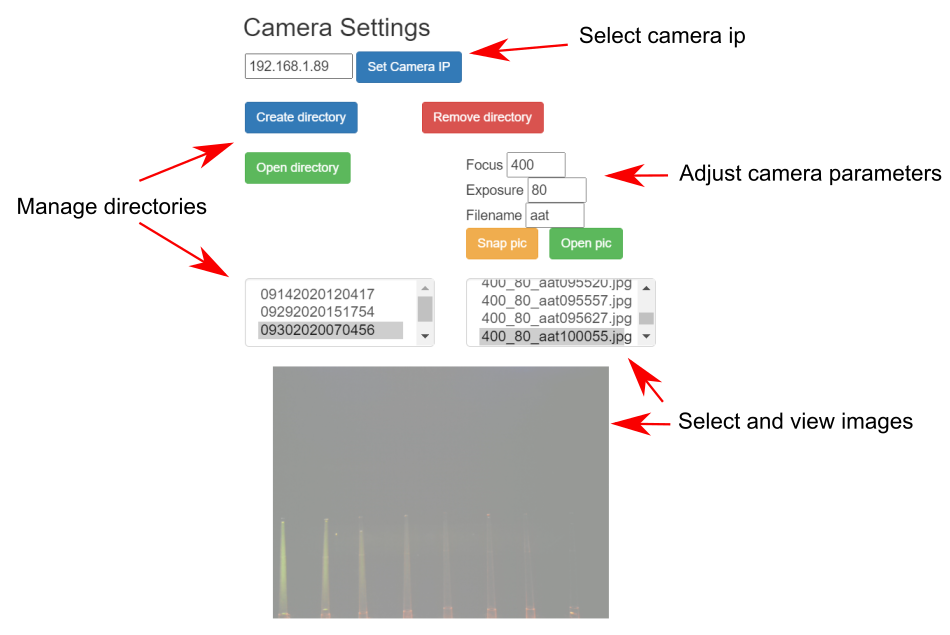

Figure 1: Interactive camera control features
Macro mode
The camera can be controlled via a macro as well. Which is nice when having to select multiple cameras or multiple camera parameters.

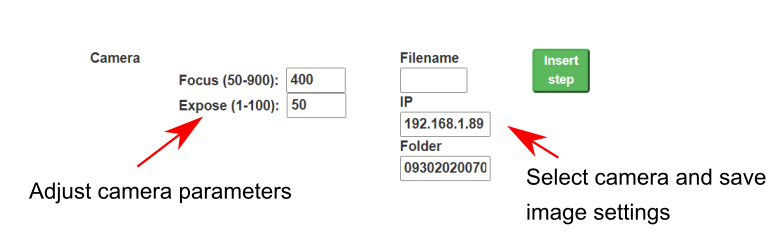

Figure 2: Macro camera control features
