Fluorescence pipette tip/tube imager

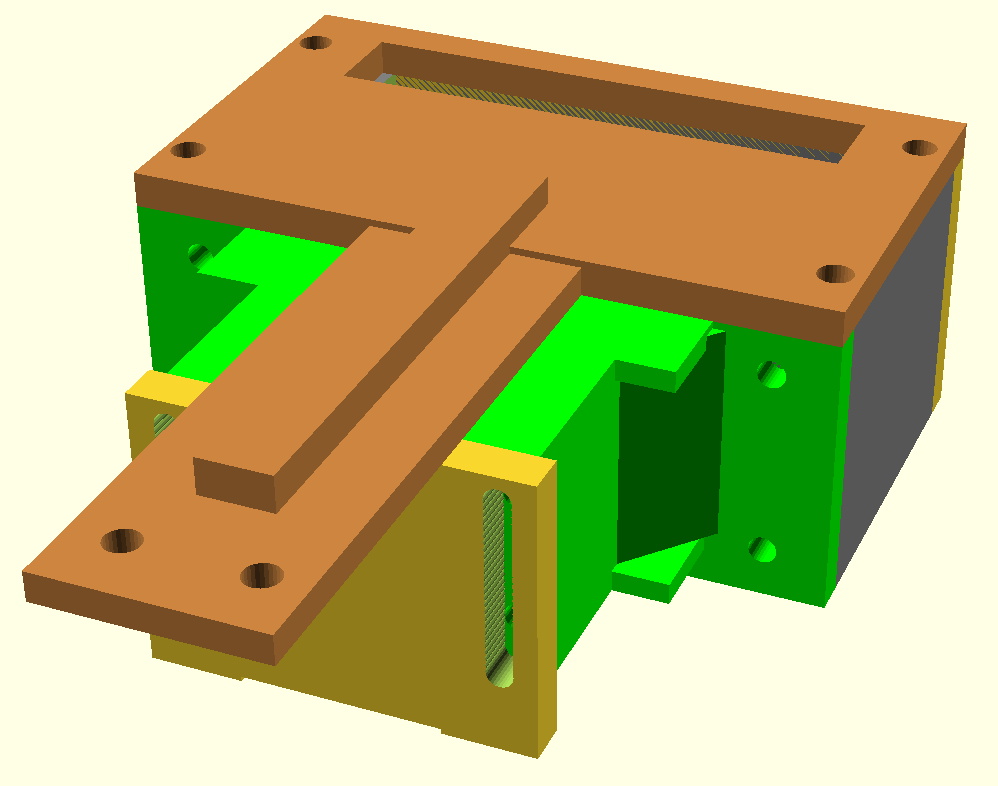

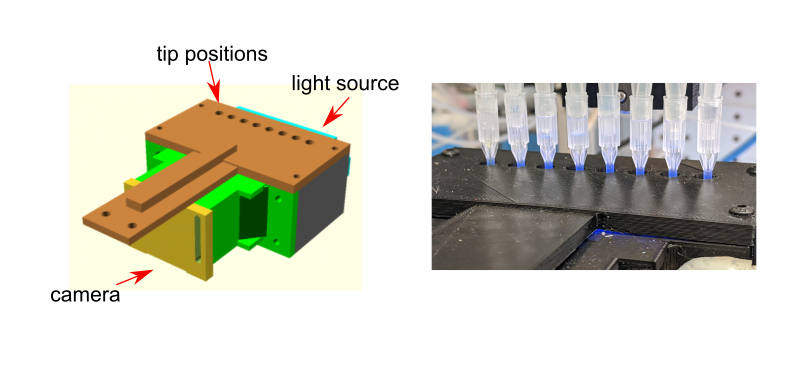

This is the assembly of the fluorescence imager for pipette tip which can be used for monitoring PCR in real-time. The stl files for the mechanical assembly of imager - pcrimager.zip

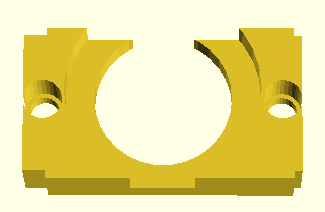

 | arducam_case_rtpcr.stl | |
 | arducam_case_rtpcr_filter.stl | |

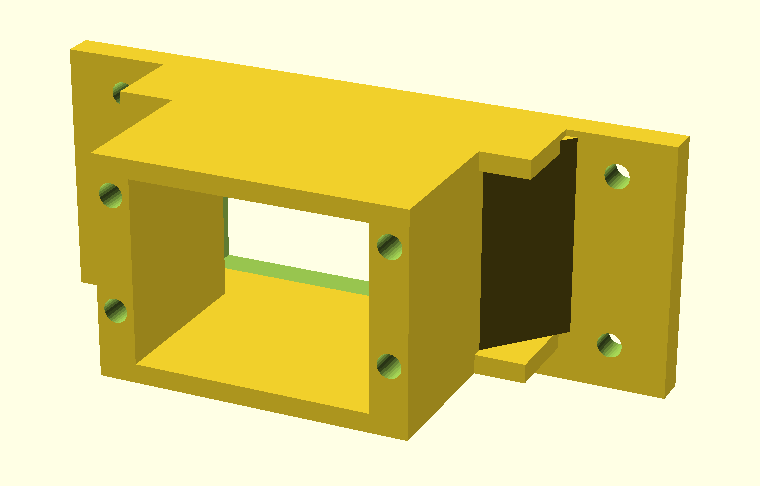

 | imagingblock_arducam_bandpassfilter.stl | |

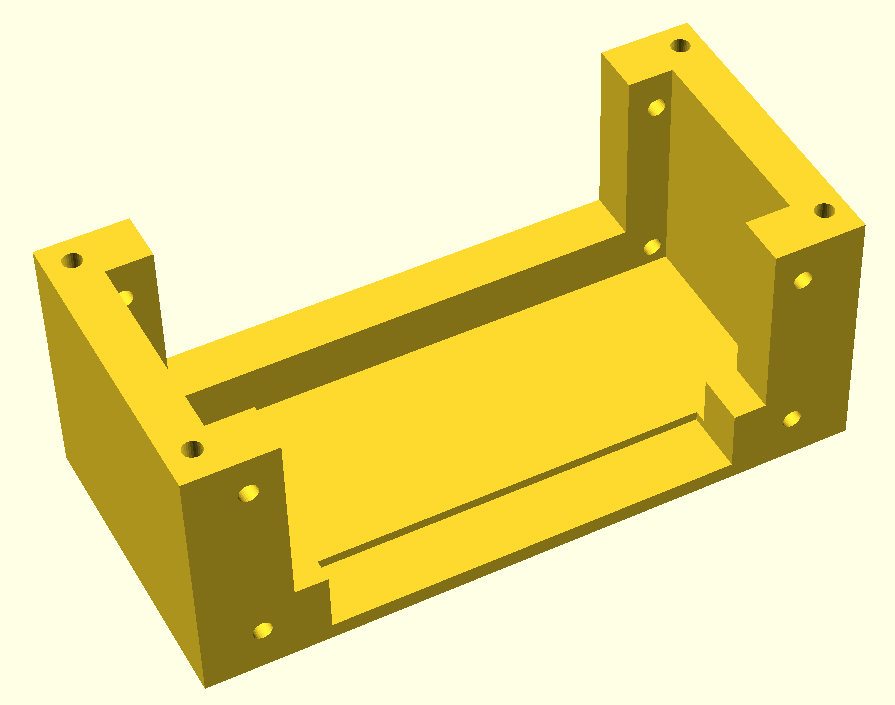

 | imagingblock_base.stl | |
 | imagingblock_imagingside.stl | |

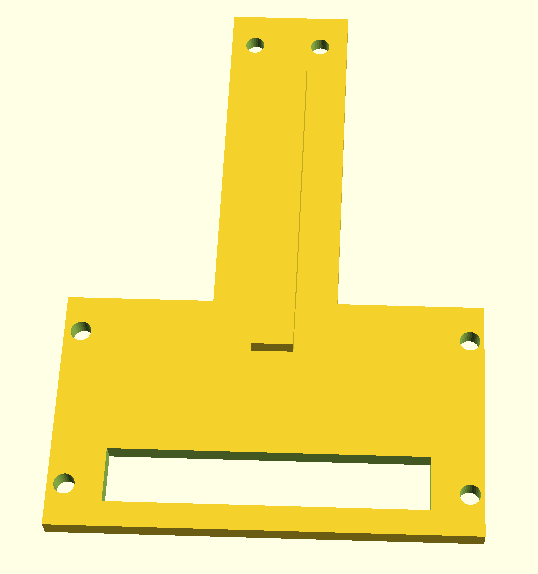

 | imagingblock_lid.stl | |

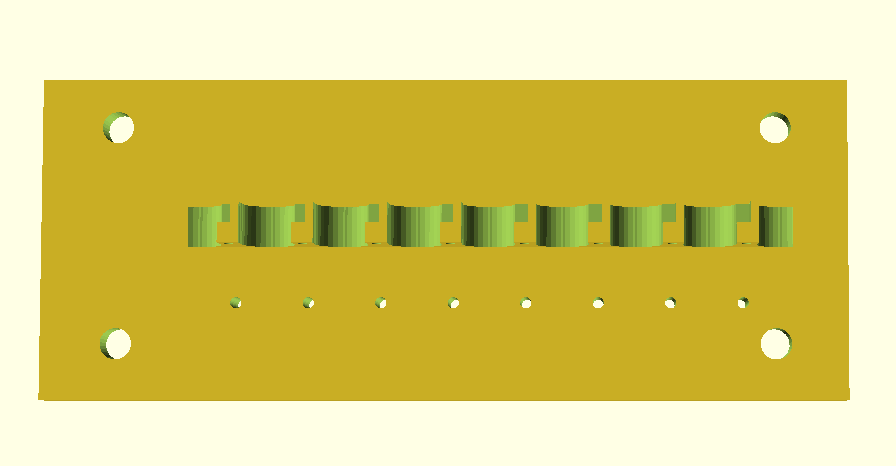

 | imagingblock_lightingside.stl | |
40 cycles - 95C 8 seconds 60C 15seconds

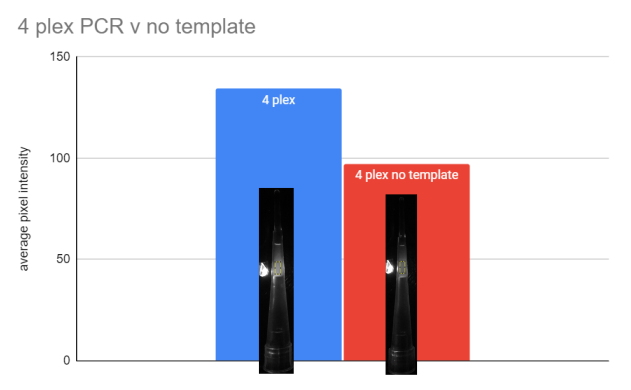

| 4 target multiplex (IL10, Hdac3, Ccl3, beta-actin) |  |

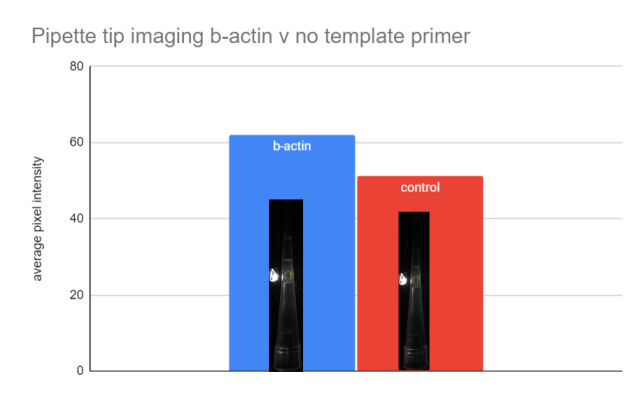

| beta-actin singleplex |  |
