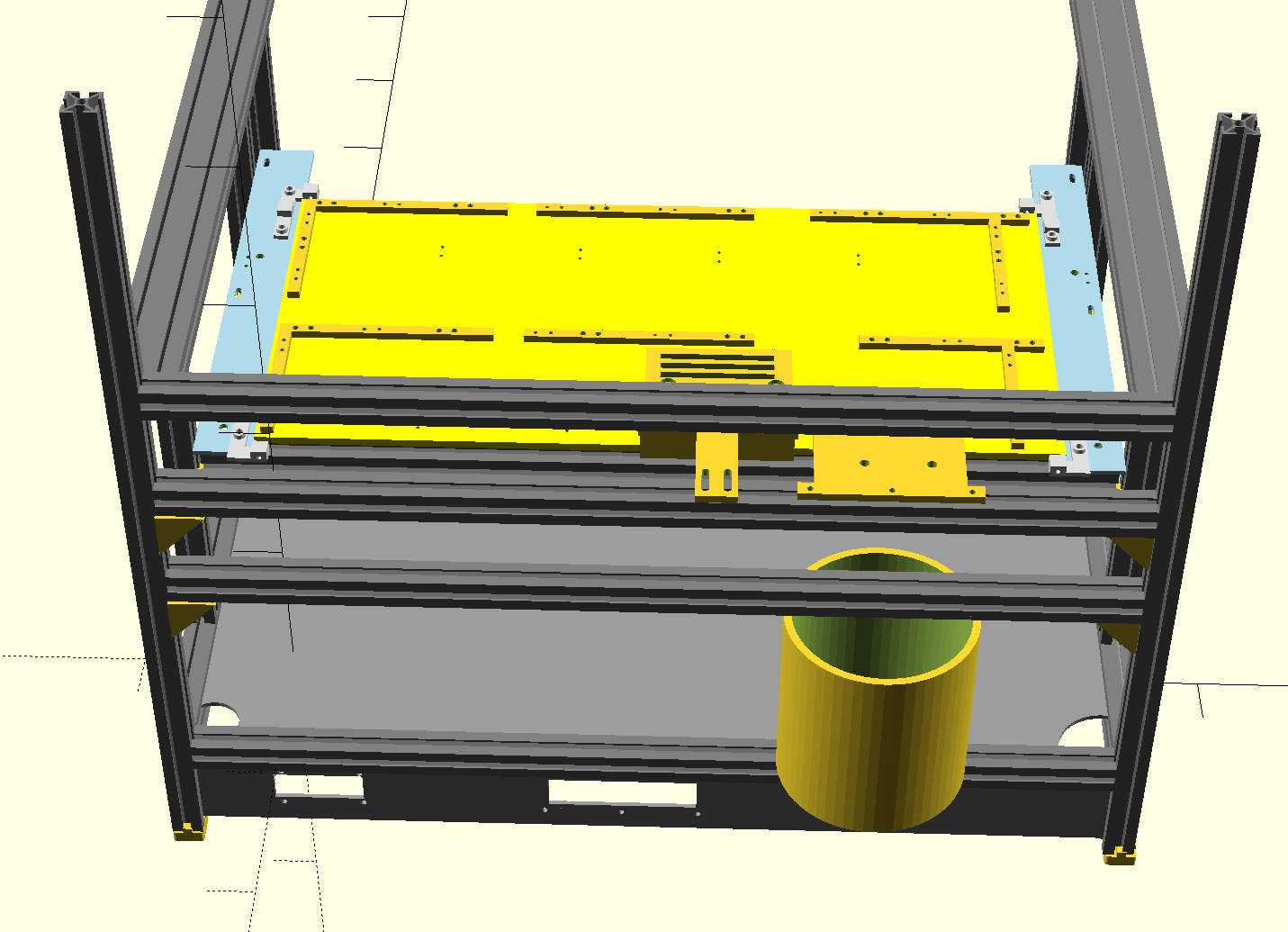

This describes how to install modules for washing pipettes (so that they can be reused) and how pipettes are ejected so that more can be reloaded. To do this two “shelves” are installed the top one is used to position these modules and the bottom one is used to position a waste container (for collected ejected tips).
To set up these 2 shelves:
- HFS5-2020-592-TPW (2 units)
- tslot20innerbracket() (4 units)
 |  |
The wash/dry station consists of 3 3D printed parts

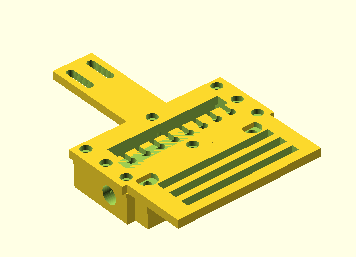

Assembled 3D module
| washbowl_8tip_base.jscad | Project: labbotbuild |

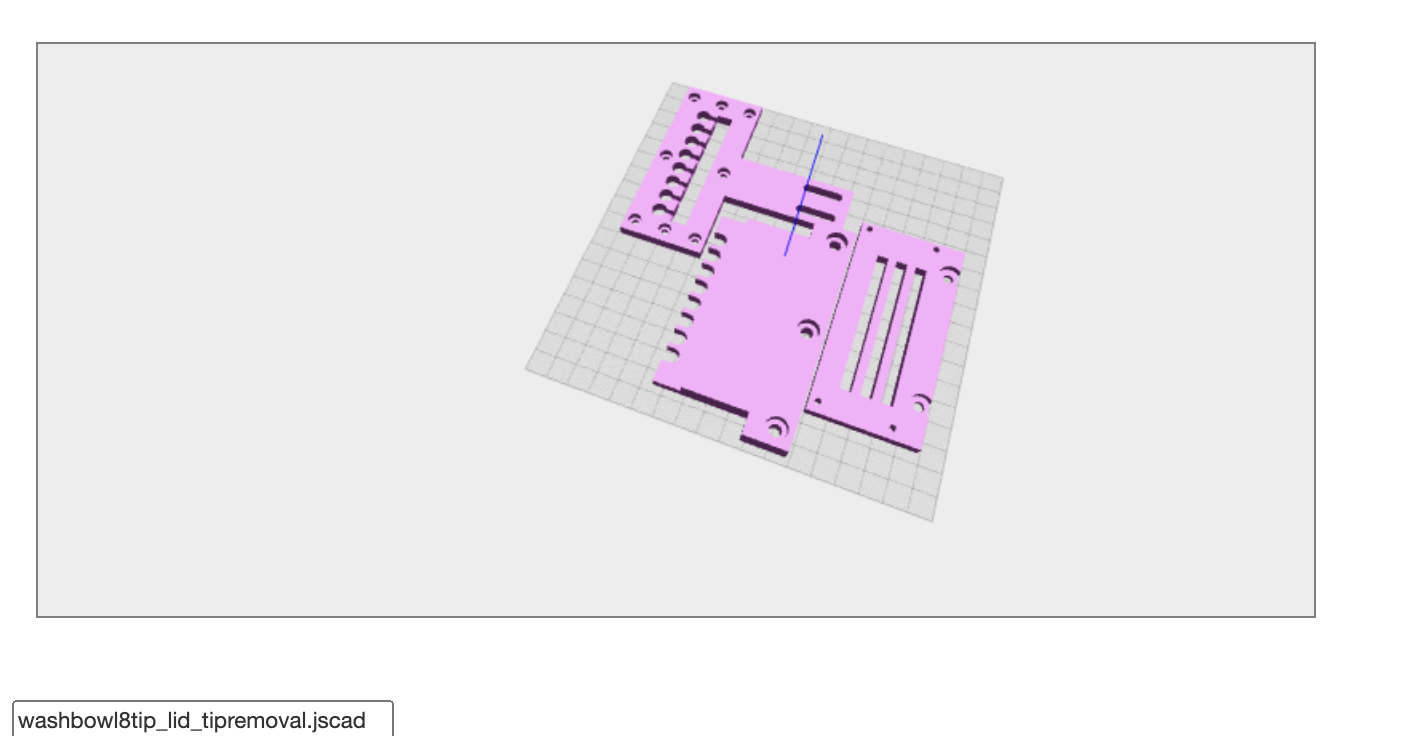

| washbowl8tip_lid_tipremoval.jscad | Project: labbotbuild |

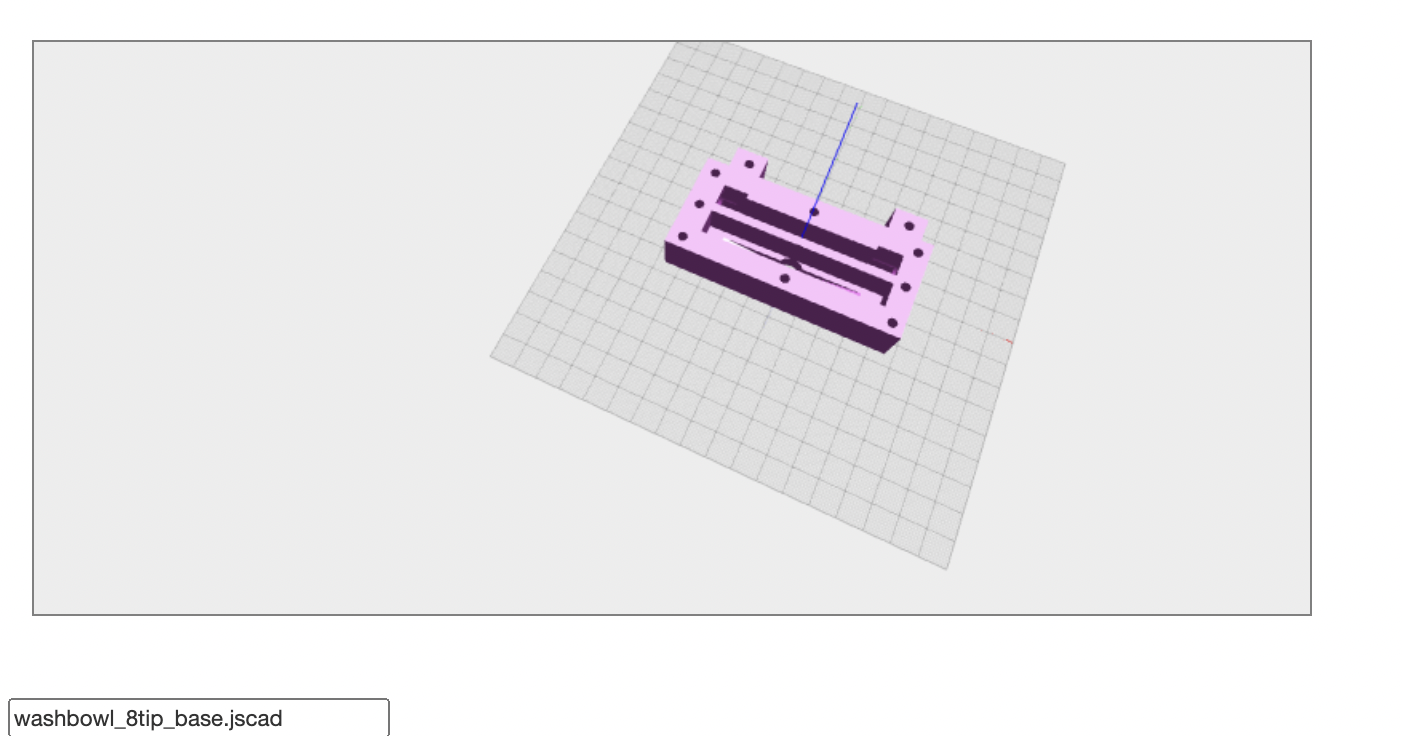

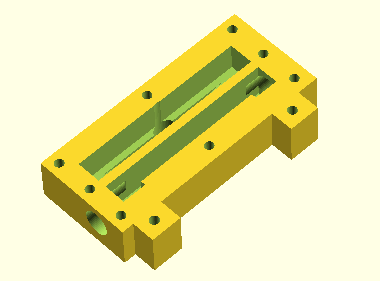

washbowl_8tip_base() washbowl_8tip_base.stl
This needs to be printed at a higher infill (like 70%) to prevent leakage or you can spray it with flex seal or similar silicon waterproofing coating.
washbowl_8tip() washbowl_8tip.stl
This connects to the extrusion
washbowl_8tip_drypad() washbowl_8tip_drypad.stl

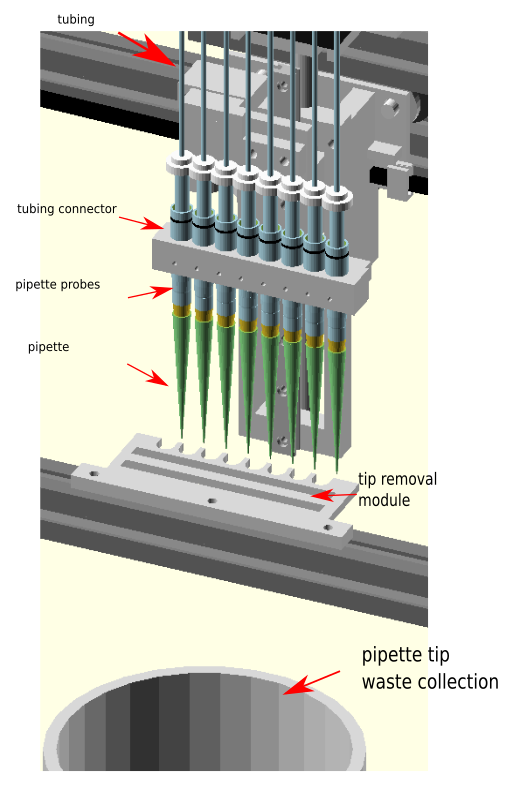

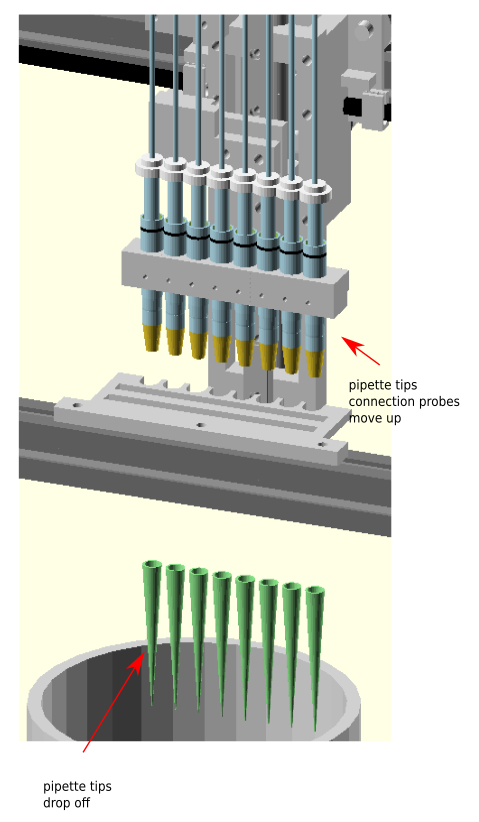

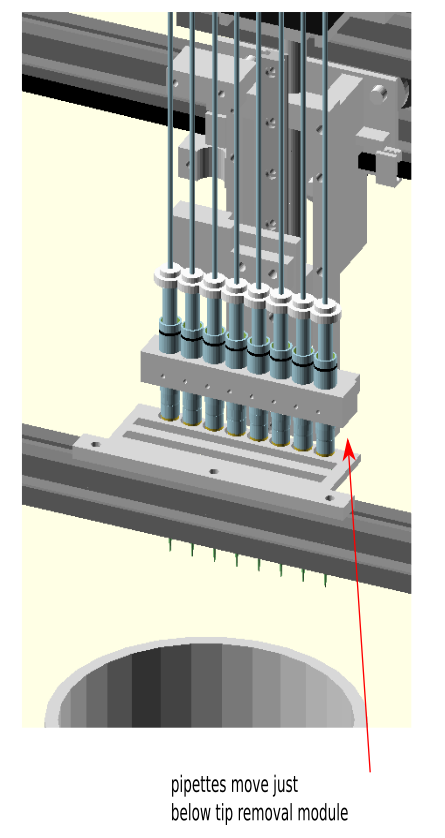

The pipette ejection plate currently comes in two sizes (p200 and p20). So they are interchangeable.

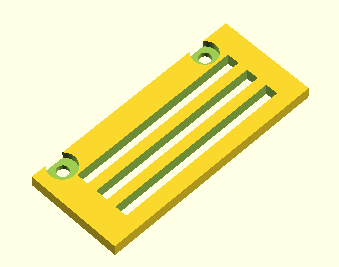

multichannel_drypad()

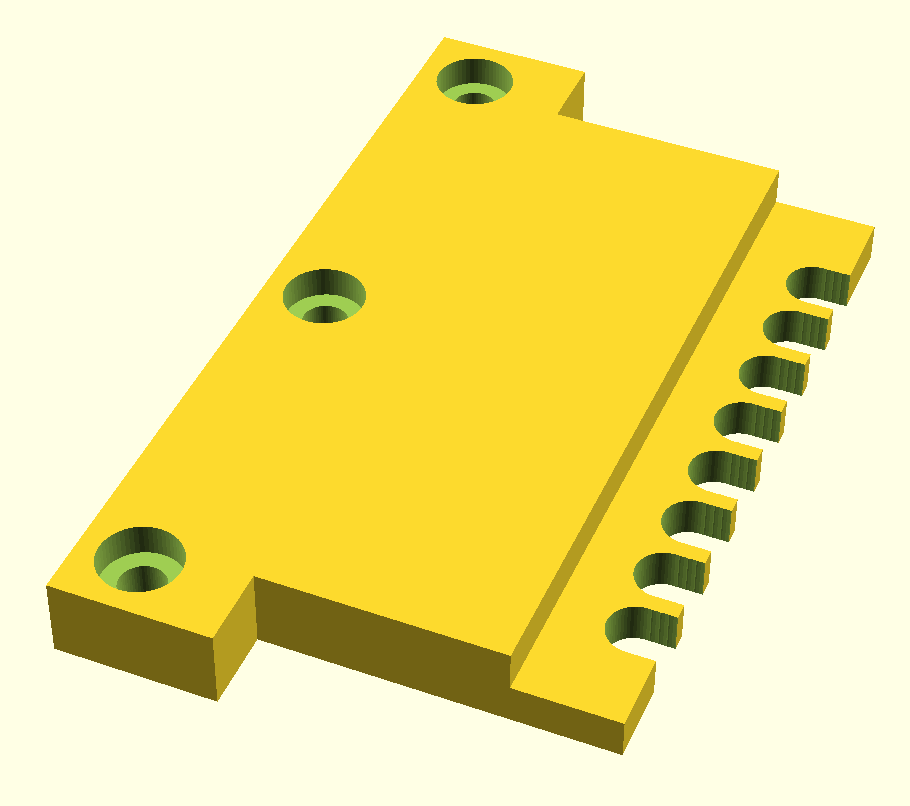

multichannel_tipremoval()
multichannel_drypad.stl multichannel_drypad_384.stl
