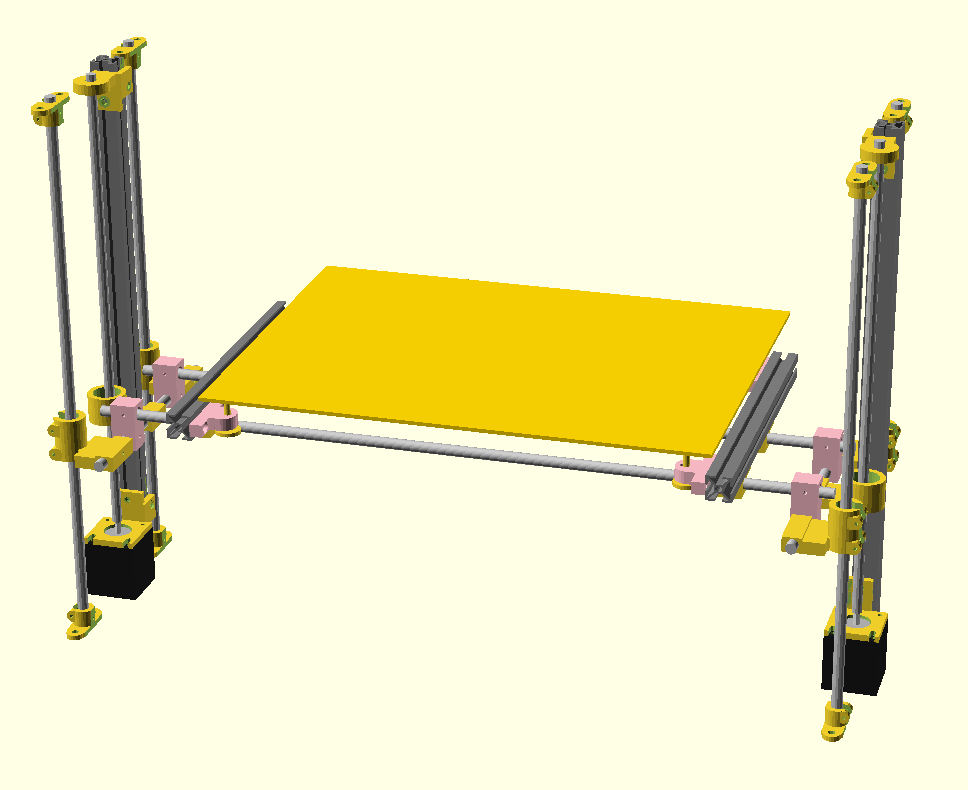

This system works with this scaffold assembly LabBot build

It is based on this function, zbed_assy_wider_threadedrod_noextrusion_higher, found in bom_zbed_moveup.scad

300mm x 400mm bed
2 threaded rods 582mm
4 smooth rods 436mm

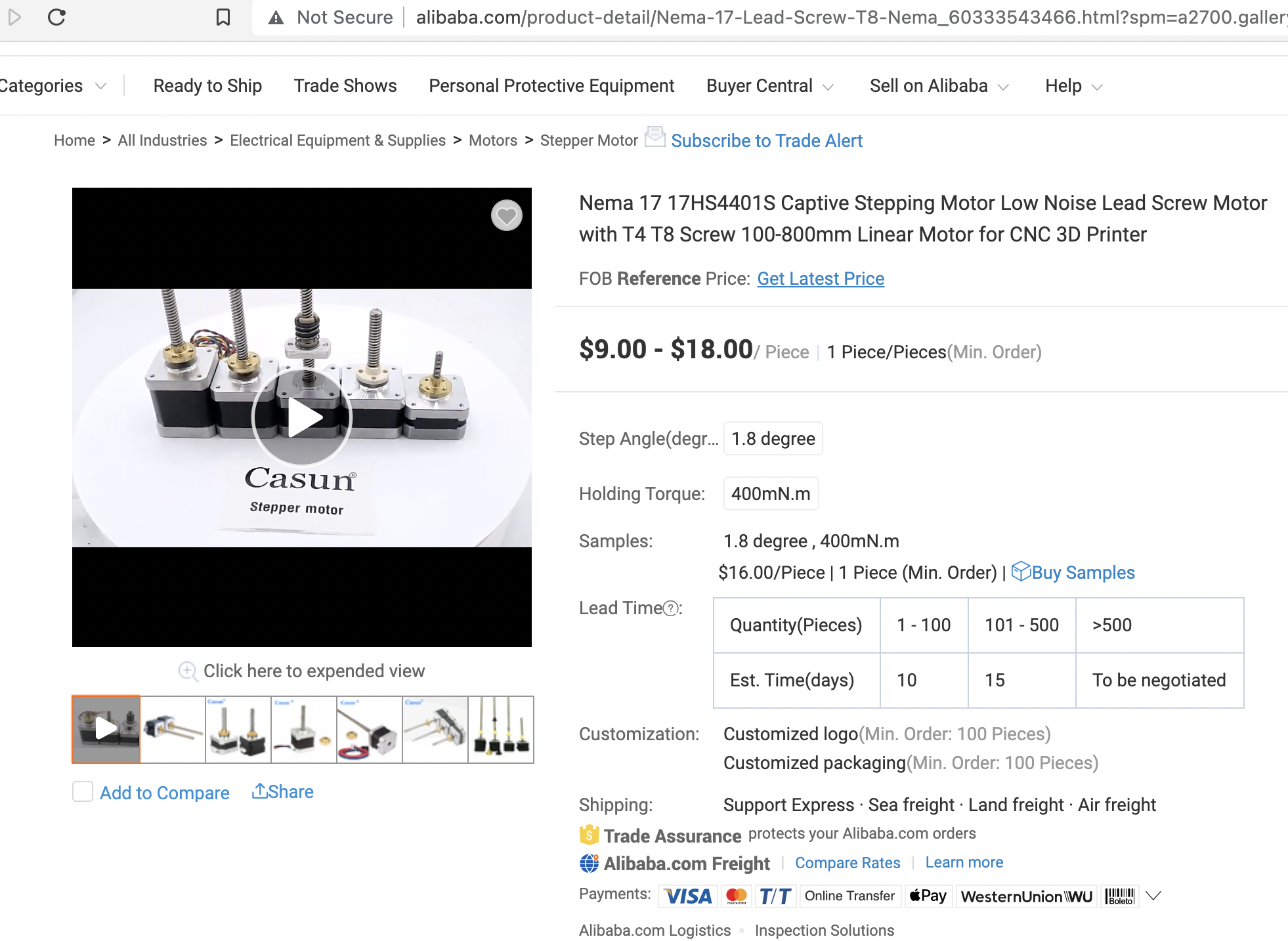

2 nema17 with 375mm shaft
bearing_mount_smz (need 2)		bearing_mount_smz.stl
motormount_smz (need 2)		motormount_smz.stl motormount_smz_dual_mirrored.stl

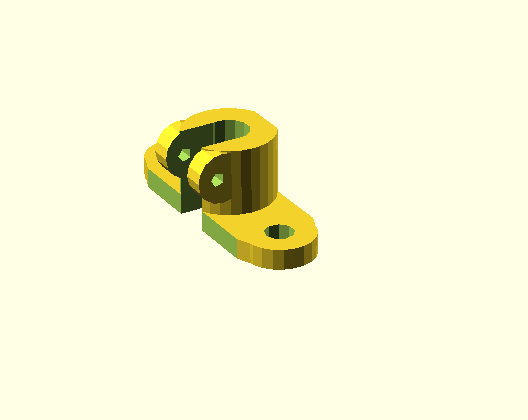

clamp_bottom_simple_m8_smoothrodholder_for_z (need 8)		clamp_bottom_simple_m8_smoothrodholder_for_z.stl
4 smooth rods m8 437 mm long	2 2020 extrusions 437mm long

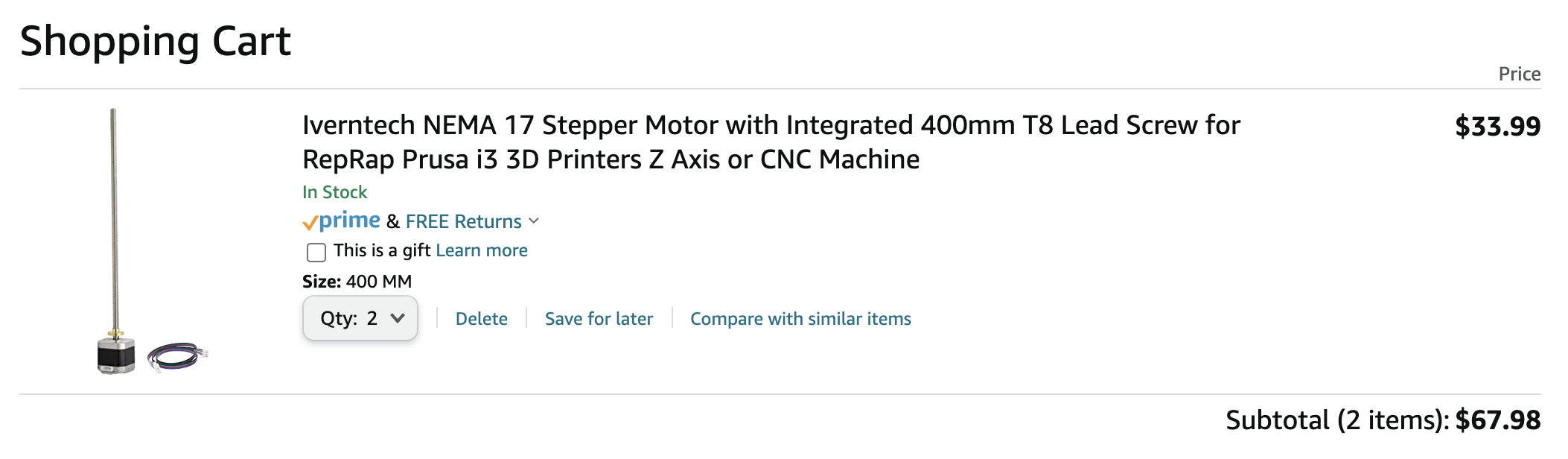

2 nema 17 with rod 377mm long

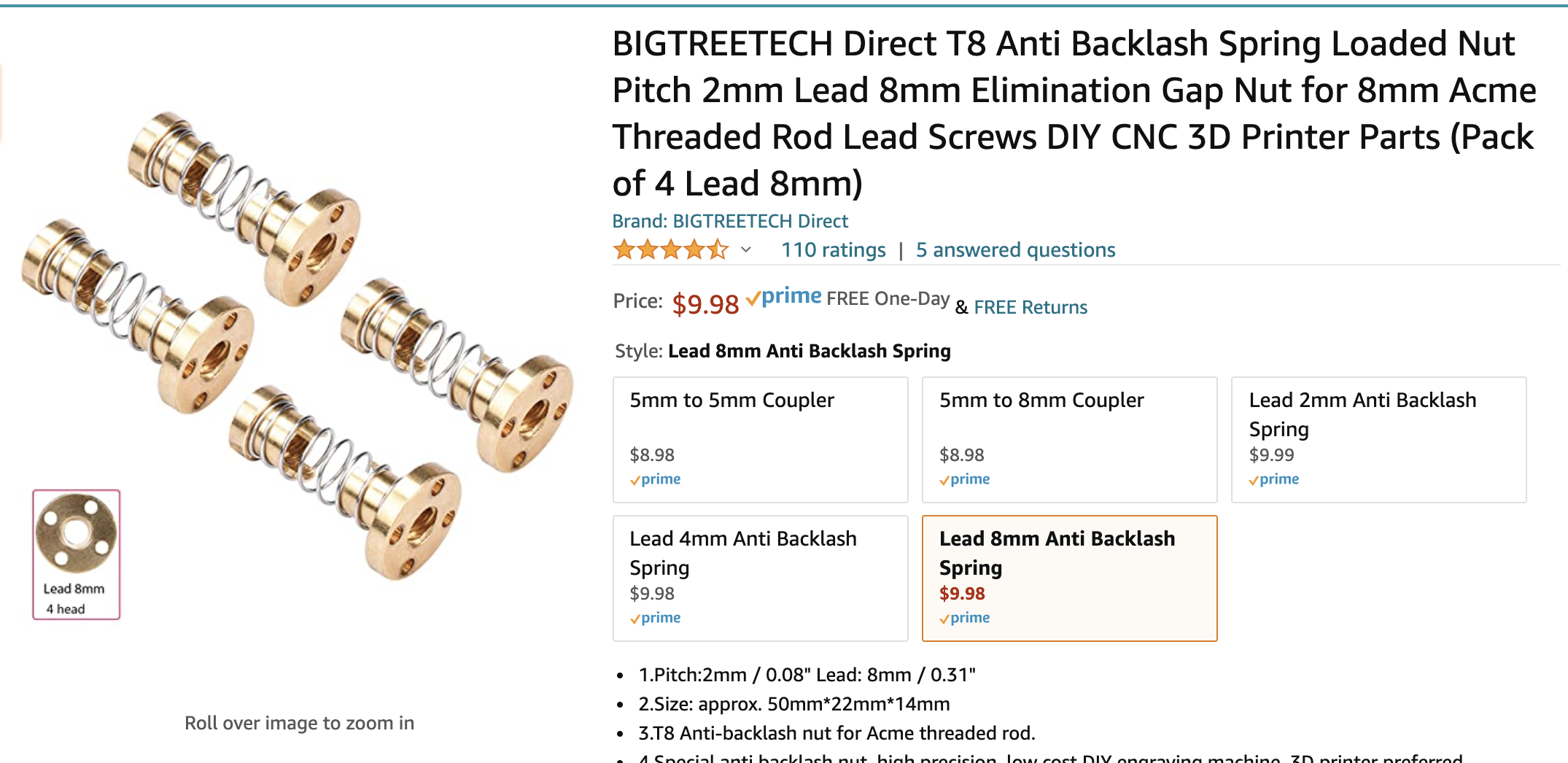

T8 nut anti-backlash (need 2)

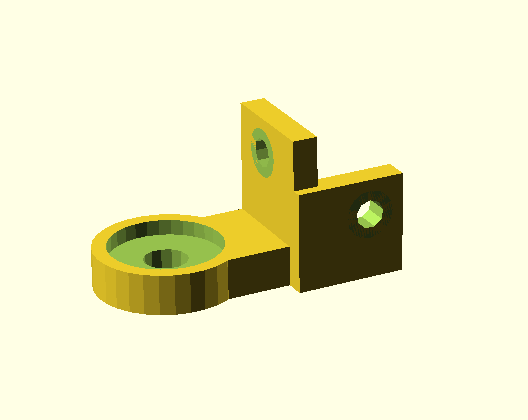

bed_attach_assy_tslot (4 of them)		front_threadedrod_bed_adjustwheel_tslot.stl

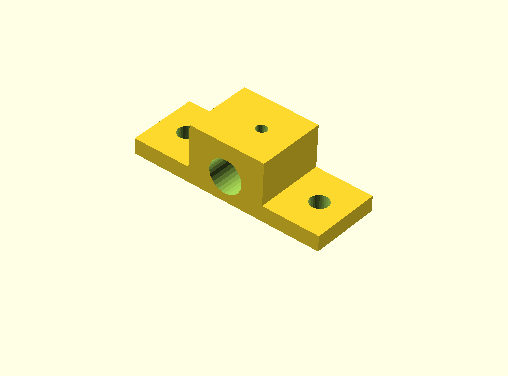

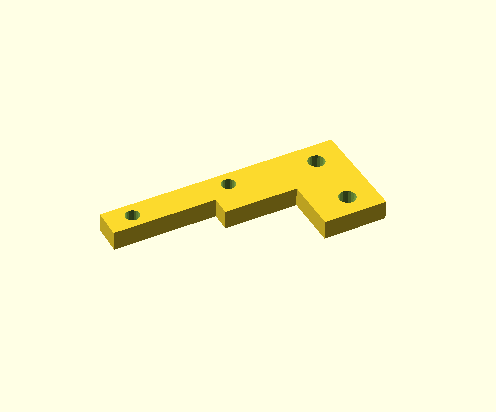

bed_bar_clamp (4 of them)		bed_bar_clamp.stl

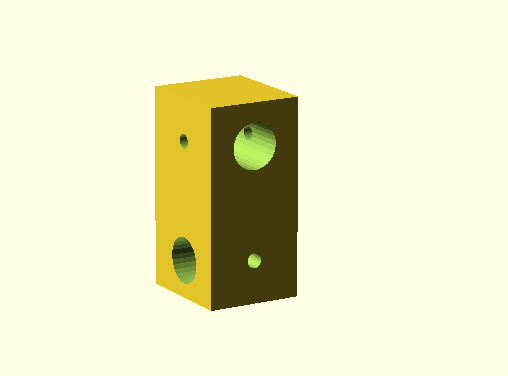

extrusion_threadrod_clamp_noextrusion (4 of them)		extrusion_threadrod_clamp_noextrusion.stl

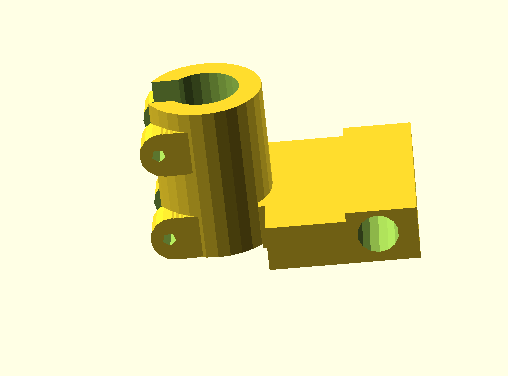

lm8uu_smz_glider_wider (4 of them)		lm8uu_smz_glider_wider.stl
zbedslot_516_smz_zbed_wider (2 of them)		zbedslot_516_smz_zbed_wider.stl

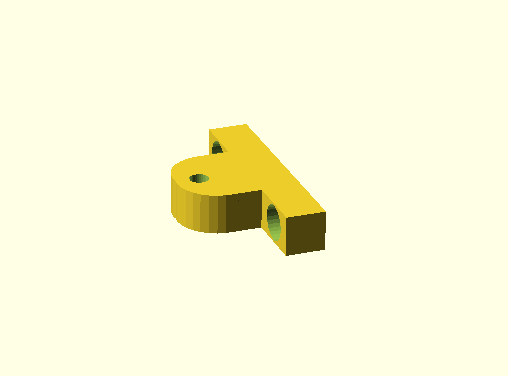

endstop support		endstop_z.stl
